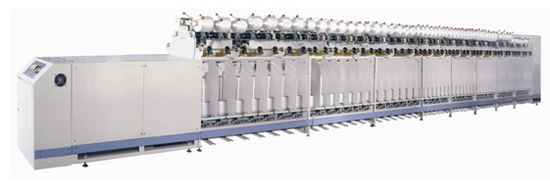

RL398D大卷裝倍捻機 LARGE DIAMETER PACKAGE TWO-FOR-ONE TWITER，如圖：

特點Features：
　　用人比原先傳統工藝省80%以上，消耗浪費降低80%以上，卷裝增大5倍以上；
　　采用油浴式齒輪箱，機電一體化全PLC控制系統，確保高卷繞速度下的優質成型與運行穩定性；
　　優質的紗線通道，將紗線損傷降到最低，更適合高品質紗線的要求；
　　適合各類長纖維紡絲的加捻，具有高速、卷裝大、浪費少、用人省等顯著優點。

The labor cost is reduced 80%,production cost is reduced 80%,bobbion yarn package is increased to 6 times compared with before;
　　To apply with the oil bath gearbox,electronic-me-chanical with PLC control system to ensure high speed with excellent widing quality;
　　It is used to twins a variaty of prolyester filament yarn with gigh speed,large diameter package,less waste and labor cost reduced;
　　The yarn runing channel desigh is perfect,used for producing high quality yarn with minimum damege the yarn surface.

適用于津布、箱包布、地毯、帆布等化纖長絲類產品的加捻（5~10kg）
　　Applicable to the twisting of

技術參數：

錠距選擇Spindle distance290mm360mm420mm

可加工原料：棉、毛、滌及短纖維的加捻　　Process materi Cotton,wool yarns,short staple

操作方式：手動　Operation method Manual

每節錠數Per-section spindle14／12／10
　　每臺節數Per-unit section numb≤10節 ≤10 sections

可紡支數Spinnable count yarn45D~20000D

錠速選擇Spindle speed≤10000

捻度選擇Twist selection50~1800

卷裝尺寸（喂入）Winding bobbin size(φ190,φ210,φ230,φ250)×420

卷繞銅管尺寸Winding bobbin sise6”~10”

卷裝重量Package weight5~10kg

卷繞速度Winding speed≤100m/min

錠子選擇Spindle selectionφ196,φ220,φ230,φ250,φ330

卷繞銅管Winding bobbin按客戶要求、長度最長320mm max.length 320mm on request

卷繞角Winding angle10°、14°47’、16°36’、18°41’、20°07&r

動力配置Driving method變頻控制，標準型22kw(可用采雙電機)frequency invrtor control,Standard model 22kw(double modlel 22kw(double motors can be used)

標準錠數Standard spindle number1129680

展臺照片：
